# yCrash MCP Integration Guide

yCrash now supports Model Context Protocol (MCP), an open standard that lets AI applications such as Cursor, Claude Desktop, and custom enterprise agents discover and invoke yCrash analysis capabilities as tools.

This guide explains what MCP adds to your yCrash deployment, how to install and configure the MCP server, how to authenticate, how to pass diagnostic files (filePath), how custom applications call tools over stdio or HTTP, what responses to expect, and how to operate the integration in production.

# 1. Overview

# What is MCP?

Model Context Protocol (MCP) is an open standard that lets AI applications (IDEs, chat products, and custom agents) discover and invoke external capabilities as tools. Configure an MCP server once. Compatible hosts can then list and call those tools at runtime, without writing a custom integration for each AI product.

# What yCrash MCP provides

The yCrash MCP server exposes four tools that map directly to your existing yCrash REST APIs:

MCP tool	yCrash REST API	Purpose
`analyzeGcLog`	`POST /analyzeGC`	Analyze Java GC logs
`analyzeThreadDump`	`POST /fastthread-api`	Analyze JVM thread dumps
`analyzeHeapDump`	`POST /analyze-hd-api`	Analyze JVM heap dumps
`generateLdapToken`	`POST /ldap/token`	Obtain an LDAP JWT for bearer authentication

# Deliverable

ycrash-mcp-server.jar is a standalone Java application that bridges MCP clients to your yCrash REST APIs. It does not replace REST, Swagger, or the yCrash UI. It complements them for AI-native workflows.

# Two minutes to understand the product

Question	Answer
What do I install?	One JAR: `ycrash-mcp-server.jar` (plus JDK 17)
What talks to yCrash?	The MCP server, not the IDE chat UI directly
How do developers use it day to day?	Configure Cursor/Claude (stdio or HTTP) and ask in natural language
How do teams share one endpoint?	Run the same JAR in HTTP mode behind HTTPS
How do I send a file?	Place the dump on the MCP server host and pass `filePath` (or paste text / give a public URL)
How do custom apps call tools?	Same JSON-RPC `tools/call` over stdio (spawn JAR) or HTTP (`POST /mcp`). See §6.

# 2. Prerequisites

# yCrash environment

Requirement	Details
yCrash instance	A running yCrash deployment reachable from the MCP server host
Base URL	Example: `https://ycrash.your-company.com` (no trailing slash)
Credentials	API key or LDAP username/password (bearer mode). Same credentials as yCrash REST access.
Network	MCP host must reach `/analyzeGC`, `/fastthread-api`, `/analyze-hd-api`, and `/ldap/token`

# MCP server host

Requirement	Details
Java	JDK 17 or later
Memory	At least 256 MB heap for the MCP process; increase for large heap dumps
Disk	For `filePath` input, diagnostic files must exist on the machine running the MCP server

# MCP client (AI host)

Any MCP-compatible client, for example:

Cursor
Claude Desktop
A custom application using an MCP client library (Python, TypeScript, Java/LangChain4j, etc.)

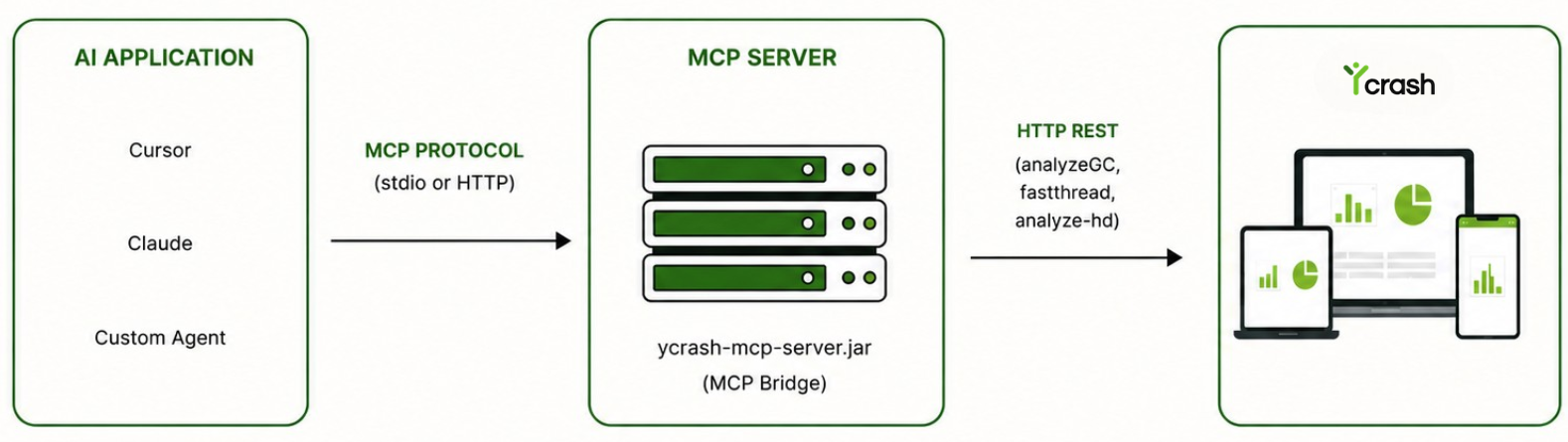

# 3. Architecture

# Key points

The MCP server is a separate process from yCrash. It is not embedded in the yCrash WAR.
The MCP client talks only to the MCP server. The MCP server calls yCrash REST on your behalf.
yCrash REST credentials (YCRASH_API_KEY or LDAP/bearer) live on the MCP server process. Separately, HTTP MCP requires YCRASH_MCP_HTTP_API_KEY so clients authenticate to the /mcp endpoint itself.

# Transport options

Transport	Best for	How it works
stdio	Desktop IDEs, per-developer setups	The AI host spawns `java -jar ycrash-mcp-server.jar` and talks over stdin/stdout
HTTP (Streamable HTTP)	Shared team / enterprise gateways	You run a long-lived HTTP process; clients connect to a URL (default `/mcp`)

# 4. Installation

# Obtain the MCP server

The MCP server ships with the yCrash enterprise distribution. After unpacking, locate:

tools/mcp/ycrash-mcp-server.jar

(On Windows: tools\mcp\ycrash-mcp-server.jar.)

Copy the JAR to the host that will run MCP (workstation for stdio, or a shared server for HTTP). No other MCP binaries are required.

Example layout:

/opt/ycrash-mcp/
  ycrash-mcp-server.jar

1
2

# Verify Java

java -version

Expected: 17.x or higher.

# Verify connectivity to yCrash

From the MCP server host:

curl -s -o /dev/null -w "%{http_code}" "https://ycrash.your-company.com"

# 5. Configuration

This section covers how to configure the MCP server and clients. For invoking tools after configuration, see §6.

# 5.1 Environment variables

Configure three things: where yCrash lives, how the MCP server authenticates to yCrash, and which local folders it may read for filePath.

# Always required

Variable	Description
`YCRASH_BASE_URL`	yCrash base URL without trailing slash, e.g. `https://ycrash.your-company.com`

# yCrash authentication (choose one mode)

Do not set both modes.

Mode A: API key

Variable	Description
`YCRASH_API_KEY`	Static yCrash API key

Leave YCRASH_BEARER_TOKEN and YCRASH_OU unset.

Mode B: Bearer / LDAP

Variable	When needed	Description
`YCRASH_OU`	Required	Organization unit for LDAP / bearer auth
`YCRASH_BEARER_TOKEN`	Optional at startup	Existing JWT, if you already have one

Leave YCRASH_API_KEY unset. If you omit YCRASH_BEARER_TOKEN, obtain a JWT later via generateLdapToken in the same MCP session.

# Local file access for `filePath`

The server reads disk only when a tool call uses filePath. Set YCRASH_FILEPATH_ALLOWLIST before the server will start (stdio and HTTP):

Value	Use when	Description
Comma-separated absolute directories	Production (recommended)	Roots the server may read, e.g. `/var/ycrash/uploads,D:/dumps`
`*` (alone)	Trusted demos only	Allow any absolute `filePath` on the MCP host

Do not mix * with directory entries. Relative paths are rejected.

export YCRASH_FILEPATH_ALLOWLIST=/var/ycrash/uploads,/tmp   # restricted
export YCRASH_FILEPATH_ALLOWLIST='*'                        # unrestricted (demos; quote * in bash)

1
2

# Optional

Variable	Description
`YCRASH_MAX_FILE_BYTES`	Maximum upload size in bytes (default: `104857600` = 100 MB)

# 5.2 Stdio configuration

Configure your MCP host with JSON. Examples use Cursor; Claude Desktop and other hosts use a similar structure.

API key mode

{
  "mcpServers": {
    "ycrash": {
      "command": "java",
      "args": ["-Xmx128m", "-Xms32m", "-jar", "/opt/ycrash-mcp/ycrash-mcp-server.jar"],
      "env": {
        "YCRASH_BASE_URL": "https://ycrash.your-company.com",
        "YCRASH_API_KEY": "your-api-key-here",
        "YCRASH_FILEPATH_ALLOWLIST": "/var/ycrash/uploads,/tmp"
      }
    }
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13

Windows paths (prefer forward slashes in JSON):

{
  "mcpServers": {
    "ycrash": {
      "command": "java",
      "args": ["-Xmx128m", "-Xms32m", "-jar", "C:/tools/ycrash-mcp/ycrash-mcp-server.jar"],
      "env": {
        "YCRASH_BASE_URL": "https://ycrash.your-company.com",
        "YCRASH_API_KEY": "your-api-key-here",
        "YCRASH_FILEPATH_ALLOWLIST": "C:/dumps,D:/temp"
      }
    }
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13

Bearer / LDAP mode (token already known)

{
  "mcpServers": {
    "ycrash": {
      "command": "java",
      "args": ["-Xmx128m", "-Xms32m", "-jar", "/opt/ycrash-mcp/ycrash-mcp-server.jar"],
      "env": {
        "YCRASH_BASE_URL": "https://ycrash.your-company.com",
        "YCRASH_BEARER_TOKEN": "eyJhbGciOiJIUzI1NiIs...",
        "YCRASH_OU": "your-org-unit",
        "YCRASH_FILEPATH_ALLOWLIST": "/var/ycrash/uploads"
      }
    }
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14

Bearer / LDAP mode (token via MCP tool generateLdapToken): set YCRASH_BASE_URL and YCRASH_OU only (no API key). After connect, call generateLdapToken in the same session, then run analysis.

After saving, refresh the MCP connection in your host. Success = connected status and four tools listed.

# 5.3 HTTP configuration

# Start the MCP HTTP server

On the shared host, set yCrash credentials, path allow-list, and an MCP HTTP API key (a secret you generate; it does not come from yCrash):

# Linux / macOS: generate MCP HTTP API key
export YCRASH_MCP_HTTP_API_KEY="$(openssl rand -hex 32)"

1
2

# Windows PowerShell
$env:YCRASH_MCP_HTTP_API_KEY = -join ((1..32) | ForEach-Object { '{0:x2}' -f (Get-Random -Maximum 256) })

1
2

Linux / macOS:

export YCRASH_BASE_URL=https://ycrash.your-company.com
export YCRASH_API_KEY=your-api-key-here
export YCRASH_FILEPATH_ALLOWLIST=/var/ycrash/uploads,/tmp
export YCRASH_MCP_HTTP_API_KEY="<paste-generated-key>"
export YCRASH_MCP_HTTP_HOST=127.0.0.1
export YCRASH_MCP_HTTP_PORT=8080
export YCRASH_MCP_HTTP_PATH=/mcp

java -cp /opt/ycrash-mcp/ycrash-mcp-server.jar \
  com.tier1app.ycrash.mcp.YCrashMcpHttpServerMain

1
2
3
4
5
6
7
8
9
10

Windows (PowerShell):

$env:YCRASH_BASE_URL = "https://ycrash.your-company.com"
$env:YCRASH_API_KEY   = "your-api-key-here"
$env:YCRASH_FILEPATH_ALLOWLIST = "C:/dumps"
$env:YCRASH_MCP_HTTP_API_KEY = "<paste-generated-key>"
$env:YCRASH_MCP_HTTP_HOST = "127.0.0.1"
$env:YCRASH_MCP_HTTP_PORT = "8080"

java -cp C:\tools\ycrash-mcp\ycrash-mcp-server.jar `
  com.tier1app.ycrash.mcp.YCrashMcpHttpServerMain

1
2
3
4
5
6
7
8
9

Logged endpoints (example):

MCP HTTP endpoint: http://127.0.0.1:8080/mcp
Health: http://127.0.0.1:8080/health
Ready:  http://127.0.0.1:8080/ready

1
2
3

Prefer binding to 127.0.0.1 and terminating HTTPS on a reverse proxy for production.

Auth policy: YCRASH_MCP_HTTP_API_KEY is required (including on localhost), unless YCRASH_MCP_HTTP_ALLOW_INSECURE=true on loopback demos only. Non-loopback binds never allow insecure mode.

# Configure MCP clients (URL + MCP API key)

Clients need the MCP URL and the same YCRASH_MCP_HTTP_API_KEY. yCrash REST credentials stay on the server.

Option A: Authorization: Bearer

{
  "mcpServers": {
    "ycrash": {
      "type": "streamable-http",
      "url": "https://mcp.your-company.com/mcp",
      "headers": {
        "Authorization": "Bearer your-mcp-http-api-key-here"
      }
    }
  }
}

1
2
3
4
5
6
7
8
9
10
11

Option B: X-Mcp-Api-Key

{
  "mcpServers": {
    "ycrash": {
      "type": "streamable-http",
      "url": "https://mcp.your-company.com/mcp",
      "headers": {
        "X-Mcp-Api-Key": "your-mcp-http-api-key-here"
      }
    }
  }
}

1
2
3
4
5
6
7
8
9
10
11

Header	Example value	Notes
`Authorization`	`Bearer <YCRASH_MCP_HTTP_API_KEY>`	Include the `Bearer` prefix
`X-Mcp-Api-Key`	`<YCRASH_MCP_HTTP_API_KEY>`	Raw key only (no `Bearer` prefix)

Compatible hosts (Cursor, Claude, MCP SDKs) obtain and resend Mcp-Session-Id after initialize automatically. Custom HTTP clients must do that themselves. See §6.3.

# HTTP server environment reference

Variable	Default	Description
`YCRASH_MCP_HTTP_HOST`	`127.0.0.1`	Bind address
`YCRASH_MCP_HTTP_PORT`	`8080`	TCP port
`YCRASH_MCP_HTTP_PATH`	`/mcp`	MCP endpoint path
`YCRASH_MCP_HTTP_API_KEY`	(required)	Protects `/mcp`
`YCRASH_MCP_HTTP_ALLOW_INSECURE`	`false`	Allow missing MCP API key on loopback only
`YCRASH_MCP_HTTP_MAX_SESSIONS`	`100`	Max concurrent sessions
`YCRASH_MCP_HTTP_SESSION_IDLE_SEC`	`1800`	Idle eviction (seconds)
`YCRASH_MCP_HTTP_ALLOW_REMOTE`	`false`	Allow non-localhost browser origins
`YCRASH_MCP_HTTP_SSE_KEEPALIVE_SEC`	`15`	SSE keepalive interval (seconds)

# Health probes

Endpoint	Purpose
`GET /health`	Liveness (process is up)
`GET /ready`	Readiness (yCrash URL and credentials/OU configured)

curl -s http://127.0.0.1:8080/health
curl -s http://127.0.0.1:8080/ready

1
2

# 6. How to call MCP Server tools

# 6.1 Available tools and parameters

# Input pattern (all analysis tools)

Each of analyzeGcLog, analyzeThreadDump, and analyzeHeapDump requires exactly one of:

Parameter	Required	Description
`filePath`	One of three	Absolute path to the diagnostic file on the MCP server machine
`textContent`	One of three	Pasted log or dump text
`location`	One of three	Public HTTP(S) URL that yCrash can download

filePath is resolved on the MCP server host (not the user’s laptop, unless they are the same machine). Paths must fall under YCRASH_FILEPATH_ALLOWLIST (unless the allow-list is *). Prefer absolute paths with forward slashes (C:/dumps/gc.log or /var/ycrash/uploads/gc.log).

# Optional metadata (all analysis tools)

Parameter	Description
`fileName`	Optional label for the report
`appName`	Application name metadata
`host`	Host metadata
`tags`	Comma-separated tags
`accept`	Response format: `json` or `xml`
`contentEncoding`	Payload compression, e.g. `gzip`
`baseUrl`	Override `YCRASH_BASE_URL` for this call only

# Tool parameter reference

Tool	Parameters	Notes
`analyzeGcLog`	Input (`filePath` \| `textContent` \| `location`) + optional metadata + `graphs` (`"true"` / `"false"`), `normalizeUnits` (boolean)	Returns metrics and report links
`analyzeThreadDump`	Input + optional metadata	Returns thread stats, problem detection, report links
`analyzeHeapDump`	Input + optional metadata	Prefer `filePath` for `.hprof`; large files may take several minutes
`generateLdapToken`	`username`, `password`	Returns LDAP JWT; applied to the current stdio process or HTTP session for later `analyze*` calls

# Argument examples

{ "filePath": "C:/dumps/thread-dump.txt", "appName": "checkout", "host": "prod-3" }

{ "filePath": "/var/ycrash/uploads/gc.log", "graphs": "true", "fileName": "prod-gc" }

{ "filePath": "D:/dumps/heap.hprof", "fileName": "oom-sample", "appName": "payments" }

{ "textContent": "2024-01-01T10:00:00.123+0000: [GC (Allocation Failure) ..." }

{ "location": "https://storage.example.com/dumps/gc.log" }

{ "username": "jdoe", "password": "***" }

On success, analysis tools return yCrash JSON. Typical fields include status, webReport, and (when applicable) graphURL or troubleshootReport. Open webReport in a browser to view the interactive report.

# 6.2 Calling tools over stdio

# 6.2.1 Cursor / Claude Desktop

In stdio mode the AI host owns the MCP connection. After you complete §5.2 and refresh MCP, the host starts ycrash-mcp-server.jar as a background process and speaks over stdin/stdout. You do not start the JAR yourself, and you do not use curl (stdio has no HTTP port).

Step	Action
1. Connect	Confirm `ycrash` is connected and all four tools are listed
2. Ask	In Agent (tool-enabled) chat, describe the analysis. Name an absolute path, paste text, or give a public URL
3. Approve	Allow the tool call if the host requests confirmation
4. Review	Open `webReport` (and related links) from the tool result

Example prompts

Goal	Example prompt
GC log on disk	Analyze `C:/dumps/gc.log` with yCrash `analyzeGcLog` and enable graphs.
Thread dump on disk	Analyze the thread dump at `/var/ycrash/uploads/td.txt` and summarize deadlocks.
Heap dump on disk	Run `analyzeHeapDump` on `D:/dumps/oom.hprof` for appName `payments`.
Paste text	Analyze this thread dump with yCrash: (then paste the dump)
Public URL	Analyze `https://artifacts.example.com/gc.log` with yCrash.
LDAP then analyze	Generate an LDAP token for user `jdoe`, then analyze `/var/ycrash/uploads/td.txt`.

You (chat) → Cursor / Claude Desktop → java -jar ycrash-mcp-server.jar (stdio)
                                      → tools/call (analyze*)
                                      → yCrash REST → report JSON in chat

1
2
3

If you run java -jar ycrash-mcp-server.jar alone in a terminal, the process waits with no prompt. That is expected: it is listening for MCP JSON-RPC on stdin from a client.

# 6.2.2 Custom AI agent (stdio)

A custom agent spawns the JAR as a child process and sends MCP JSON-RPC on stdin/stdout. Prefer an official MCP SDK so framing, initialize, and tools/call are handled for you.

Client flow

Spawn java -jar ycrash-mcp-server.jar with YCRASH_BASE_URL, yCrash auth env, and YCRASH_FILEPATH_ALLOWLIST.
Send initialize and wait for the result.
Send notifications/initialized.
Optionally call tools/list.
Call tools/call with the tool name and arguments (see §6.1).
Read the result; close the process when finished.

Shared tools/call shape (same for stdio and HTTP):

{
  "jsonrpc": "2.0",
  "id": 2,
  "method": "tools/call",
  "params": {
    "name": "analyzeGcLog",
    "arguments": {
      "filePath": "C:/dumps/gc.log",
      "graphs": "true",
      "appName": "payments"
    }
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13

Conceptual message sequence

→ {"jsonrpc":"2.0","id":1,"method":"initialize","params":{"protocolVersion":"2025-11-25","capabilities":{},"clientInfo":{"name":"my-app","version":"1.0"}}}
← {"jsonrpc":"2.0","id":1,"result":{...}}
→ {"jsonrpc":"2.0","method":"notifications/initialized"}
→ {"jsonrpc":"2.0","id":2,"method":"tools/call","params":{"name":"analyzeThreadDump","arguments":{"filePath":"C:/dumps/td.txt"}}}
← {"jsonrpc":"2.0","id":2,"result":{"content":[{"type":"text","text":"{ \"status\": true, \"webReport\": \"...\" }"}]}}

1
2
3
4
5

Python sketch (MCP SDK)

# pip install mcp
import asyncio
from mcp import ClientSession, StdioServerParameters
from mcp.client.stdio import stdio_client

async def main():
    server = StdioServerParameters(
        command="java",
        args=["-jar", r"C:\tools\ycrash-mcp\ycrash-mcp-server.jar"],
        env={
            "YCRASH_BASE_URL": "https://ycrash.your-company.com",
            "YCRASH_API_KEY": "your-api-key",
            "YCRASH_FILEPATH_ALLOWLIST": r"C:\dumps",
        },
    )
    async with stdio_client(server) as (read, write):
        async with ClientSession(read, write) as session:
            await session.initialize()
            result = await session.call_tool(
                "analyzeGcLog",
                {"filePath": r"C:\dumps\gc.log", "graphs": "true"},
            )
            print(result)

asyncio.run(main())

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

Java sample client (ships in the JAR; spawns the server over stdio):

java -cp ycrash-mcp-server.jar \
  -Dcmd=call -Dtool=analyzeGcLog \
  -Dargs='{"filePath":"C:/dumps/gc.log","graphs":"true"}' \
  com.tier1app.ycrash.mcp.sample.YCrashMcpSampleClient

1
2
3
4

# 6.3 Calling tools over HTTP

HTTP MCP uses the same tools and arguments as stdio. The difference is transport: clients POST to /mcp on a server that is already running (§5.3).

# 6.3.1 Cursor / Claude Desktop

Point the host at your MCP URL and send the MCP HTTP API key (Bearer or X-Mcp-Api-Key) as in §5.3. Refresh MCP, confirm four tools, then use Agent chat the same way as stdio (§6.2.1): natural-language prompts, optional tool approval, then open webReport.

The host manages the HTTP session for you: after connect it performs initialize, stores Mcp-Session-Id, and resends that header on later requests. You do not copy session IDs manually in Cursor or Claude Desktop.

yCrash credentials remain on the server. Client config only needs the MCP URL and MCP HTTP API key.

# 6.3.2 Custom AI agent (HTTP): initialize and `Mcp-Session-Id`

A custom HTTP client must:

Authenticate with the MCP HTTP API key on every request.
Call initialize once to create a session.
Read Mcp-Session-Id from the response headers of that initialize call.
Send the same Mcp-Session-Id on every later tools/list, tools/call, SSE GET, and DELETE.
Re-initialize if the session expires (idle timeout defaults to YCRASH_MCP_HTTP_SESSION_IDLE_SEC, typically 30 minutes).

Why the session header matters: HTTP MCP is stateful per client. Without Mcp-Session-Id, the server rejects non-initialize requests (typically HTTP 400). LDAP tokens from generateLdapToken are also scoped to that session.

Required headers

Header	When	Value
`Content-Type`	Always	`application/json`
`Accept`	Always	`application/json` (and/or `text/event-stream` if using SSE)
`Authorization` or `X-Mcp-Api-Key`	Always	MCP HTTP API key
`MCP-Protocol-Version`	Recommended	e.g. `2025-11-25`
`Mcp-Session-Id`	After initialize	Session id from the initialize response

Step 1: Initialize (create session)

curl -i -X POST http://127.0.0.1:8080/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json" \
  -H "Authorization: Bearer <mcp-key>" \
  -H "MCP-Protocol-Version: 2025-11-25" \
  -d '{"jsonrpc":"2.0","id":1,"method":"initialize","params":{"protocolVersion":"2025-11-25","capabilities":{},"clientInfo":{"name":"my-app","version":"1.0"}}}'

1
2
3
4
5
6

From the response headers, copy Mcp-Session-Id (example: 4171184c-4947-423d-927a-c04fd5d8a890).

Step 2: Call a tool (pass session id and filePath)

curl -i -X POST http://127.0.0.1:8080/mcp \
  -H "Content-Type: application/json" \
  -H "Accept: application/json" \
  -H "Authorization: Bearer <mcp-key>" \
  -H "MCP-Protocol-Version: 2025-11-25" \
  -H "Mcp-Session-Id: <session-id>" \
  -d '{"jsonrpc":"2.0","id":2,"method":"tools/call","params":{"name":"analyzeGcLog","arguments":{"filePath":"/var/ycrash/uploads/gc.log","graphs":"true"}}}'

1
2
3
4
5
6
7

Additional examples (same headers; change tool name and arguments):

# Thread dump
-d '{"jsonrpc":"2.0","id":3,"method":"tools/call","params":{"name":"analyzeThreadDump","arguments":{"filePath":"/var/ycrash/uploads/td.txt","appName":"checkout"}}}'

# Heap dump
-d '{"jsonrpc":"2.0","id":4,"method":"tools/call","params":{"name":"analyzeHeapDump","arguments":{"filePath":"/var/ycrash/uploads/heap.hprof","fileName":"oom-sample"}}}'

1
2
3
4
5

Python sketch

import requests

url = "http://127.0.0.1:8080/mcp"
headers = {
    "Content-Type": "application/json",
    "Accept": "application/json",
    "Authorization": "Bearer <mcp-key>",
    "MCP-Protocol-Version": "2025-11-25",
}

# 1) Create session
init = requests.post(url, headers=headers, json={
    "jsonrpc": "2.0",
    "id": 1,
    "method": "initialize",
    "params": {
        "protocolVersion": "2025-11-25",
        "capabilities": {},
        "clientInfo": {"name": "my-app", "version": "1.0"},
    },
})
init.raise_for_status()
headers["Mcp-Session-Id"] = init.headers["Mcp-Session-Id"]

# 2) tools/call: file must exist on the HTTP MCP server host
call = requests.post(url, headers=headers, json={
    "jsonrpc": "2.0",
    "id": 2,
    "method": "tools/call",
    "params": {
        "name": "analyzeThreadDump",
        "arguments": {"filePath": "/var/ycrash/uploads/td.txt", "appName": "checkout"},
    },
})
print(call.status_code, call.text)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

Java sample client over HTTP (points at a running server; no spawn):

export YCRASH_MCP_HTTP_URL=http://127.0.0.1:8080/mcp
export YCRASH_MCP_HTTP_API_KEY=<mcp-key>
java -cp ycrash-mcp-server.jar \
  -Dcmd=call -Dtool=analyzeThreadDump \
  -Dargs='{"filePath":"/var/ycrash/uploads/td.txt"}' \
  com.tier1app.ycrash.mcp.sample.YCrashMcpSampleClient

1
2
3
4
5
6

# Stdio vs HTTP for custom agents

	Stdio	HTTP
Who starts the JAR?	Your agent (child process)	Shared MCP HTTP service
Auth to MCP	Env on the child (`YCRASH_*`)	MCP HTTP API key + `Mcp-Session-Id`
Where `filePath` lives	Disk visible to the child process	Disk on the HTTP MCP server
Session	One process = one logical session	Explicit `initialize` → `Mcp-Session-Id`

← Github Copilot Audit Trail →

# yCrash MCP Integration Guide

# 1. Overview

# What is MCP?

# What yCrash MCP provides

# Deliverable

# Two minutes to understand the product

# 2. Prerequisites

# yCrash environment

# MCP server host

# MCP client (AI host)

# 3. Architecture

# Key points

# Transport options

# 4. Installation

# Obtain the MCP server

# Verify Java

# Verify connectivity to yCrash

# 5. Configuration

# 5.1 Environment variables

# Always required

# yCrash authentication (choose one mode)

# Local file access for filePath

# Optional

# 5.2 Stdio configuration

# 5.3 HTTP configuration

# Start the MCP HTTP server

# Configure MCP clients (URL + MCP API key)

# HTTP server environment reference

# Health probes

# 6. How to call MCP Server tools

# 6.1 Available tools and parameters

# Input pattern (all analysis tools)

# Optional metadata (all analysis tools)

# Tool parameter reference

# Argument examples

# 6.2 Calling tools over stdio

# 6.2.1 Cursor / Claude Desktop

# 6.2.2 Custom AI agent (stdio)

# 6.3 Calling tools over HTTP

# 6.3.1 Cursor / Claude Desktop

# 6.3.2 Custom AI agent (HTTP): initialize and Mcp-Session-Id

# Stdio vs HTTP for custom agents

# Local file access for `filePath`

# 6.3.2 Custom AI agent (HTTP): initialize and `Mcp-Session-Id`
